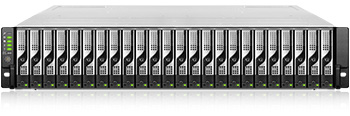

JB 224B (Legacy product)
Convenient DAS solution for your RAID card and HBA-equipped servers works in hassle-free plug n use. The JB 224B enclosure uses a 2U small form factor that deploys easily. Available with single and dual controllers and offering redundant 80 PLUS power supplies as standard, the JB 224B is the simpler way to hook up storage – and much more affordable than buying a dedicated RAID system if all you need is room to grow.
This model is discontinued; the recommended offering is JBOD expansion enclosure.
Host Ports
Two 6Gb/s SAS wide ports (SFF-8088) support:
- Dual host connections
- 1 x IN port for connection to the host and 1 x OUT port for expansion to an additional enclosure
Controller
Dual redundant
Drive Connectivity
- 6Gb/s SAS connectivity
- S.M.A.R.T. support
- Automatic bad-sector reassignment
- Dedicated bandwidth to each connected drive
Supported Drives
- 2.5" SAS and SATA SSD
- 2.5" 10,000 RPM SAS HDD
Max. Drive Number
- Per system: 24
- Via RAID card to additional JBOD: 216
- Via HBA to additional JBOD: 120
Rack Support
2U, 19-inch rackmount
Green Design
- 80 PLUS-certified power supplies delivering more than 80% energy efficiency
- Intelligent multi-level drive spin-down
Availability and Reliability
- Redundant, hot-swappable hardware modules
- Multi-pathing (EonPath)
- Device mapper
Notification
Various event notification methods including email and SNMP trap.
Service and Support
Standard service
- 3-year limited hardware/software warranty and 8x5 phone, web, and email support
Upgrade/Extension service (optional and service may vary by region)
- replacement part dispatch on the next business day (up to 5 years)
Power Supply Unit
- Power supplies: redundant and hot-swappable 530W x 2 (80 PLUS Bronze)
- AC voltage: 100VAC @10A to 240VAC @5A
- Frequency: 47-63 Hz
Environmental
- Temperature:
- Operating: 5°C to 35°C
- Non-operating: -40°C to 60°C
- Altitude:
- Operating: sea level to 3,048m (10,000ft)
- Non-operating: sea level to 12,192m (40,000ft)
- Relative humidity:
- Operating: 5% to 90%
- Non-operating: uncontrolled to 95%
Dimensions (W x H x D)
440 x 90 x 500 mm (without chassis ears and protrusions)
Weight
18.10kg/ 39.90lbs (without HDDs)
Package Dimensions (W x H x D)
779 x 642 x 597 mm
Controller Support
- LSI 6Gb/s SAS RAID cards
- MegaRAID SAS 9280-8e
- MegaRAID SAS 9286-8e
- LSI 6Gb/s HBAs
- SAS 9200-8e
- SAS 9207-8e
